履帶鏈軌總成參數
號 | 型號 | 節數︵ | 履帶重量kg︵ | 鏈軌重量kg︵ | 履帶,鏈軌主要安裝尺寸 | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
臺 | 臺 | 臺 | |||||||||||
︶ | ︶ | ︶ | A | B | C | D | E | F | G | H | I | ||
1 | 8260MC | 98 | 8114 | 3724 | 260.35 | 76.2 | 87 | 86.1 | 83 | 156 | 184.15 | 235 | 320 |
2 | 8260MD | 98 | 8114 | 3724 | 260.35 | 76.2 | 87 | 86.1 | 83 | 156 | 184.15 | 235 | 320 |
3 | 8260ME | 98 | 8471 | 3820 | 260.35 | 76.2 | 87 | 92 | 83 | 156 | 184.15 | 235 | 320 |
4 | 8260MF | 98 | 8480 | 3820 | 260.35 | 76.2 | 87 | 92 | 83 | 156 | 184.15 | 235 | 320 |
5 | 8260MG | 84 | 7026 | 3239 | 260.35 | 76.2 | 87 | 88.6 | 83 | 156 | 184.15 | 235 | 320 |
6 | 8228MC | 82 | 4665 | 2251 | 228.6 | 76.2 | 71.44 | 79.2 | 78 | 138 | 169 | 219.8 | 294 |
7 | 8228MD | 104 | 6429 | 2879 | 228.6 | 76.2 | 71.44 | 79.2 | 78 | 138 | 169 | 219.8 | 294 |
8 | 8228ME | 94 | 4414 | 1820 | 228.6 | 76.2 | 71.4 | 71.75 | 70 | 129 | 144 | 184 | 251 |
9 | 8228MF | 94 | 4417 | 1823 | 228.6 | 76.2 | 71.4 | 71.75 | 70 | 129 | 144 | 184 | 251 |
10 | 8216MD | 76 | 3344 | 1416 | 215.9 | 76.2 | 64.26 | 71.4 | 69.85 | 125.43 | 146.08 | 184.18 | 251 |
11 | 8216ME | 110 | 5884 | 2162 | 216 | 76.2 | 63 | 74.3 | 70 | 129 | 146 | 184 | 251 |
12 | 8216MG | 76 | 3344 | 1416 | 215.9 | 76.2 | 64.26 | 71.4 | 69.85 | 125.43 | 146.08 | 184.18 | 251 |
13 | 8216MH | 90 | 3464 | 1469 | 216 | 76.2 | 63 | 67.1 | 64 | 116 | 140.4 | 178.4 | 243 |
14 | 8216ML | 98 | 4543 | 1845 | 216 | 76.2 | 63 | 71.8 | 70 | 129 | 146 | 184 | 251 |
15 | 8216MJ | 76 | 3381 | 1483 | 215.9 | 76.2 | 64.26 | 71.4 | 69.85 | 125.43 | 146.08 | 184.18 | 251 |
16 | 8216MM | 90 | 5325 | 1705 | 216 | 76.2 | 63 | 74.3 | 70 | 129 | 146 | 184 | 251 |
17 | 8216MS | 76 | 3497 | 1412 | 215.9 | 76.2 | 64.26 | 74.6 | 69.85 | 125.4 | 146.08 | 184.18 | 251 |
18 | 8216MV | 100 | 4644 | 1848 | 215.9 | 76.2 | 64.3 | 71.4 | 70 | 125.5 | 146.05 | 184.15 | 254 |
19 | 8216RE | 76 | 3169 | 1394 | 215.9 | 76.2 | 64.26 | 74.3 | 69.85 | 125.43 | 146.08 | 184.18 | 251 |
20 | 8203MB | 76 | 2549 | 1142 | 203 | 72.2 | 60 | 66.8 | 63 | 115 | 146 | 184 | 243 |
21 | 8203MC | 76 | 2549 | 1142 | 203 | 72.2 | 60 | 66.8 | 63 | 115 | 146 | 186 | 243 |
22 | 8203MD | 74 | 2486 | 1093 | 203 | 72.2 | 60 | 66.8 | 63 | 115 | 138.3 | 178.3 | 235 |
23 | 8203MI | 84 | 1272 | 202.8 | 76.2 | 57.9 | 66.5 | 68.96 | 121.4 | 146 | 184 | 242.6 | |
24 | 8203MJ | 74 | 2543 | 1150 | 203 | 72.2 | 60 | 66.8 | 63 | 115 | 138.3 | 178.3 | 235 |
25 | 8203MM | 84 | 3751 | 1294 | 203 | 72.2 | 60 | 66.8 | 63 | 115 | 138.3 | 178.3 | 235 |
26 | 8203MN | 100 | 3598 | 1548 | 203.2 | 72.2 | 58 | 66.9 | 64 | 116 | 138.4 | 178.4 | 242 |
27 | 8203MP | 102 | 3874 | 1614 | 203.2 | 72.2 | 60 | 67.1 | 63 | 115 | 138.3 | 178.3 | 235 |
28 | 8203MS | 72 | 2566 | 1059 | 202.8 | 76.2 | 57.9 | 69.8 | 68.96 | 121.4 | 133.3 | 171.4 | 230 |
29 | 8203MV | 100 | 3598 | 1548 | 203.2 | 72.2 | 58 | 66.9 | 64 | 116 | 138.4 | 178.4 | 242 |
30 | 8190MB | 90 | 2660 | 1056 | 190 | 62 | 58 | 59.4 | 58 | 105 | 124.4 | 160.4 | 218 |
31 | 8190MH | 90 | 2660 | 1056 | 190 | 62 | 58 | 59.4 | 58 | 105 | 124.4 | 160.4 | 220 |
32 | 8190MK | 98 | 2676 | 1088 | 190 | 69 | 58 | 59.4 | 60 | 106 | 119.57 | 155.57 | 207 |
33 | 8190ML | 90 | 2660 | 1056 | 190 | 62 | 58 | 59.4 | 58 | 105 | 124.4 | 160.4 | 220 |
34 | 8190MM | 98 | 2870 | 1216 | 190 | 62 | 58 | 59.1 | 58 | 105 | 124.4 | 160.4 | 220 |
35 | 8190MN | 118 | 1464 | 190 | 62 | 58 | 59.1 | 58 | 105 | 124.4 | 160.4 | 220 | |
36 | 8190MO | 92 | 2502 | 1080 | 190 | 62 | 58 | 59.4 | 58 | 105 | 124.4 | 160.4 | 214 |
37 | 8190MV | 98 | 2966 | 1216 | 190 | 62 | 58 | 59 | 58 | 105 | 124.4 | 160.4 | 220 |
38 | 8175GA | 94 | 1052 | 175.41 | 58.72 | 57.25 | 58.72 | 60.2 | 103.2 | 125.4 | 144.46 | 212 | |
39 | 8175GB | 96 | 1046 | 175.41 | 58.72 | 57.25 | 58.72 | 60.2 | 103.2 | 125.4 | 144.46 | 212 | |
40 | 8175MA | 84 | 1496 | 564 | 175 | 57 | 54 | 48.3 | 47 | 88 | 86.4 | 102.4 | 168 |
41 | 8175MG | 84 | 1496 | 564 | 175 | 57 | 54 | 48.3 | 47 | 88 | 86.4 | 102.4 | 168 |
42 | 8175MH | 100 | 3126 | 1101 | 175 | 57 | 54 | 55.22 | 56.5 | 101.5 | 122.4 | 158.4 | 218 |
43 | 8175MI | 100 | 3126 | 1101 | 175 | 57 | 54 | 55.22 | 56.5 | 101.5 | 122.4 | 158.4 | 218 |
44 | 8175MJ | 98 | 1090 | 175 | 57 | 54 | 57.4 | 56.5 | 101.5 | 122.4 | 158.4 | 218 | |
45 | 8175MK | 74 | 1832 | 822 | 175 | 57 | 54 | 58.5 | 56.5 | 101.5 | 122.4 | 158.4 | 218 |
46 | 8171MA | 78 | 1862 | 852 | 171 | 58.73 | 55.12 | 53.8 | 53.3 | 101.6 | 125.41 | 144.46 | 209.26 |
47 | 8171MB | 78 | 2256 | 852 | 171 | 58.73 | 55.12 | 53.8 | 53.3 | 101.6 | 125.41 | 144.46 | 209.26 |
48 | 8171GA | 88 | 1884 | 704 | 171.45 | 60.33 | 55.56 | 54 | 52 | 95.2 | 107.95 | 107.95 | 184 |
49 | 8171GC | 80 | 1480 | 640 | 171.45 | 60.33 | 55.56 | 54 | 52 | 95.2 | 107.95 | 107.95 | 184 |
50 | 8171GE | 82 | 1680 | 647 | 171.45 | 60.33 | 55.56 | 50.83 | 52 | 95.2 | 107.95 | 107.95 | 179 |
51 | 8171GF | 82 | 1568 | 656 | 171.45 | 60.33 | 55.56 | 54 | 52 | 95.2 | 107.95 | 107.95 | 184 |
52 | 8155GA | 84 | 1086 | 520 | 155.57 | 57.15 | 49.2 | 43 | 41.3 | 76.2 | 88.9 | 88.9 | 157 |
53 | 8155MB | 92 | 1210 | 613 | 155.57 | 54.8 | 48.5 | 47 | 47 | 84 | 88.9 | 104.8 | 159 |
54 | 8154MB | 74 | 924 | 482 | 154.1 | 57.1 | 44 | 45.3 | 47 | 87 | 82.4 | 112.4 | 162 |
55 | 8154MC | 78 | 844 | 331 | 154 | 57 | 44 | 41.3 | 40 | 74 | 73 | 89 | 131 |
56 | 8154ME | 78 | 1678 | 508 | 154.1 | 57.1 | 44 | 45.3 | 47 | 87 | 82.4 | 112.4 | 162 |
57 | 8154MF | 78 | 1094 | 518 | 154.1 | 57.1 | 44 | 45.3 | 47 | 87 | 89.8 | 119.8 | 169.4 |
58 | 8154MG | 78 | 1072 | 512 | 154.1 | 57.1 | 44 | 45.3 | 47 | 87 | 82.4 | 112.4 | 162 |
59 | 8140GB | 84 | 1014 | 348 | 140 | 52 | 44 | 40.3 | 40 | 75 | 86 | 86 | 137 |
60 | 8135MD | 88 | 780 | 350 | 135 | 43.4 | 41 | 41.3 | 41 | 75 | 72 | 99 | 143 |
61 | 8135GA | 80 | 599 | 209 | 135 | 46 | 41 | 35.2 | 35 | 65 | 64.4 | 88.4 | 123.4 |
62 | 8135GB | 80 | 546 | 215 | 135 | 46 | 41 | 35.2 | 35 | 65 | 74.4 | 98.4 | 133.4 |
63 | 8135GC | 78 | 555 | 201 | 135 | 46 | 41 | 35.2 | 35 | 65 | 58.4 | 82.4 | 117.4 |
64 | 8135GD | 74 | 522 | 188 | 135 | 46 | 41 | 35.2 | 35 | 65 | 53.4 | 77.4 | 112.4 |
65 | 8135GE | 80 | 526 | 290 | 135 | 46 | 41 | 35.2 | 35 | 65 | 80 | 104 | 140 |
66 | 8135GF | 96 | 711 | 258 | 135 | 46 | 41 | 35.2 | 35 | 65 | 69.4 | 93.4 | 128.4 |
67 | 8135GK | 78 | 616 | 229 | 135 | 46 | 40 | 35.1 | 36 | 67 | 80 | 104 | 140 |
68 | 8135GV | 78 | 642 | 293 | 135 | 43.4 | 42.4 | 39 | 36 | 70 | 72 | 99 | 140 |
69 | 8125GA | 86 | 417 | 178 | 125 | 53 | 36 | 32 | 35 | 63 | 80 | 80 | 128 |
70 | 8101GH | 100 | 508 | 184 | 101.6 | 23.5 | 36.55 | 33.26 | 40 | 70 | 55.5 | 55.5 | 97 |
序號 | 型號 | 結構型式 | 適用噸位 | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
J | K | L | M | N | O | P | Q | R | ||||
1 | 8260MC | 278.06 | 266 | 138.5 | 133 | 650 | 70.5 | 306 | 27.2 | 57.2 | 主銷式 | 70T |
2 | 8260MD | 278.06 | 266 | 138.5 | 133 | 650 | 70.5 | 306 | 26.2 | 57.2 | 主銷式 | 70T |
3 | 8260ME | 278.06 | 266 | 138.5 | 133 | 650 | 70.5 | 306 | 29 | 57.2 | 主銷式 | 70T |
4 | 8260MF | 278.06 | 266 | 138.5 | 133 | 650 | 70.5 | 306 | 26.2 | 57.2 | 主銷式 | 70T |
5 | 8260MG | 278.06 | 266 | 138.5 | 133 | 650 | 70.5 | 306 | 27.2 | 55.7 | 主銷式 | D355 |
6 | 8228MC | 245.6 | 238.5 | 129.9 | 122.8 | 560 | 97 | 268 | 24.5 | 48.5 | 主銷式 | D150、D155、TY320B |
7 | 8228MD | 245.6 | 238.5 | 129.9 | 122.8 | 600 | 97 | 268 | 26 | 48.5 | 插銷式 | 40T |
8 | 8228ME | 210 | 202.6 | 113.4 | 106 | 600 | 49 | 247 | 24.2 | 47.3 | 主銷式 | 45T |
9 | 8228MF | 210 | 202.6 | 113.4 | 106 | 600 | 49 | 247 | 24.2 | 47.3 | 插銷式 | 45T |
10 | 8216MD | 211.4 | 203.3 | 113.1 | 108.4 | 560 | 86 | 250 | 19.2 | 47.32 | 主銷式 | D7G、SD22、D85 |
11 | 8216ME | 209.2 | 202.1 | 113.1 | 106 | 600 | 44 | 247 | 24.5 | 47.32 | 主銷式 | PC400 |
12 | 8216MG | 211.4 | 203.3 | 113.1 | 108.4 | 560 | 86 | 250 | 19.2 | 47.32 | 主銷式 | D7G |
13 | 8216MH | 197.6 | 191.4 | 106.3 | 102 | 600 | 41 | 247 | 22.2 | 44.4 | 插銷式 | 30T |
14 | 8216ML | 209.2 | 202.1 | 113.1 | 106 | 600 | 49 | 247 | 24.2 | 47.3 | 主銷式 | 35T |
15 | 8216MJ | 211.4 | 203.3 | 113.1 | 108.4 | 560 | 86 | 250 | 20.5 | 47.32 | 主銷式 | D7G |
16 | 8216MM | 209.2 | 202.1 | 113.1 | 106 | 910 | 123 | 205 | 20.2 | 47.32 | 主銷式 | TSY220 |
17 | 8216MS | 211.4 | 203.3 | 113.1 | 108.4 | 610 | 86 | 250 | 19.2 | 47.32 | 單齒主節 | TY320B |
18 | 8216MV | 207.45 | 200.25 | 107.25 | 107.25 | 600 | 49 | 247 | 73.2 | 47.7 | 主銷式 | EC360 |
19 | 8216RE | 208.4 | 200.4 | 113.1 | 108.4 | 560 | 86.3 | 252.25 | 19.2 | 47.3 | 單齒主節 | SD22 |
20 | 8203MB | 208 | 200.9 | 115.1 | 108 | 500 | 74 | 238 | 20.2 | 44.4 | 主銷式 | 宣化T140、上海TY120 |
21 | 8203MC | 208 | 200.9 | 115.1 | 108 | 500 | 74 | 238 | 20.2 | 44.4 | 主銷式 | 鞍山120 |
22 | 8203MD | 200.3 | 193.2 | 107.4 | 100.3 | 510 | 74 | 238 | 19.2 | 44.4 | 主銷式 | D60、D65 |
23 | 8203MI | 205.1 | 195.1 | 114.3 | 114.3 | 20.2 | 44.15 | 主銷式 | 移山120 | |||
24 | 8203MJ | 200.3 | 193.2 | 107.4 | 100.3 | 510 | 74 | 238 | 20.2 | 44.4 | 主銷式 | D60、D65、TBY160 |
25 | 8203MM | 200.3 | 193.2 | 115.1 | 100.3 | 1100 | 90 | 190 | 20.2 | 44.4 | 主銷式 | TSY160L、TS160L |
26 | 8203MN | 200.6 | 194.1 | 107.5 | 101 | 600 | 37 | 232.5 | 20.3 | 44.75 | 主銷式 | EC290 |
27 | 8203MP | 200.3 | 193.2 | 107.4 | 100.3 | 600 | 37 | 232.5 | 20.2 | 44.4 | 插銷式 | 30T |
28 | 8203MS | 192.5 | 182.5 | 101.7 | 101.7 | 560 | 74 | 238 | 19.2 | 44.4 | 單齒主節 | D60、D65、TBY160 |
29 | 8203MV | 200.6 | 194.1 | 107.5 | 101 | 600 | 37 | 232.5 | 20.3 | 44.75 | 主銷式 | EC290 |
30 | 8190MB | 175.6 | 169.6 | 90.8 | 84.8 | 600 | 36 | 217.5 | 18.2 | 37.8 | 主銷式 | PC200、PC220 |
31 | 8190MH | 175.6 | 169.6 | 90.8 | 84.8 | 600 | 36 | 217.5 | 20.2 | 37.8 | 插銷式 | PC200、PC220 |
32 | 8190MK | 170.57 | 161.8 | 87.32 | 82.57 | 600 | 36 | 217.5 | 20.2 | 36.63 | 主銷式 | E220B |
33 | 8190ML | 175.6 | 169.4 | 90.4 | 84.8 | 600 | 36 | 217.5 | 20.2 | 37.8 | 主銷式 | PC200、PC220 |
34 | 8190MM | 176 | 170 | 87.78 | 83 | 600 | 36 | 217.5 | 20.2 | 37.7 | 插銷式 | EC210B、EC240B |
35 | 8190MN | 176 | 170 | 87.78 | 83 | 20.2 | 37.7 | 主銷式 | EC210B、EC240B | |||
36 | 8190MO | 173.6 | 167.6 | 88.8 | 82.8 | 600 | 36 | 217.5 | 20.2 | 37.8 | 主銷式 | 20T |
37 | 8190MV | 176.04 | 170.16 | 87.78 | 83 | 600 | 36 | 217.5 | 20.2 | 38 | 主銷式 | EC210 |
38 | 8175GA | 168.4 | 162.4 | 88.8 | 82.8 | 18.2 | 36.3 | 主銷式 | MS180、EX200-1、D5B | |||
39 | 8175GB | 168.4 | 162.4 | 88.8 | 82.8 | 16.2 | 36.3 | 主銷式 | MS180、EX200-1、D5B | |||
40 | 8175MA | 122.4 | 117.5 | 57.3 | 52.4 | 500 | 38.5 | 203 | 16.2 | 31 | 插銷式 | 12T、10T |
41 | 8175MG | 122.4 | 117.5 | 57.3 | 52.4 | 500 | 38.5 | 203 | 16.2 | 31.75 | 主銷式 | 12T、10T |
42 | 8175MH | 173 | 166.7 | 92.2 | 84.4 | 600 | 38.5 | 203 | 18.2 | 37.72 | 主銷式 | D50、PC150 |
43 | 8175MI | 173 | 166.7 | 92.2 | 84.4 | 600 | 38.5 | 203 | 16.2 | 37.72 | 主銷式 | D50、PC150 |
44 | 8175MJ | 173 | 166.7 | 92.2 | 84.4 | 18.2 | 37.72 | 主銷式 | D50、PC150 | |||
45 | 8175MK | 173 | 166.7 | 92.2 | 84.4 | 500 | 62 | 199.6 | 18.2 | 37.8 | 主銷式 | D50、PC150 |
46 | 8171MA | 176.3 | 167.2 | 86.3 | 86.3 | 450 | 62 | 199.9 | 16.2 | 36.5 | 主銷式 | T90、T100 |
47 | 8171MB | 176.3 | 167.2 | 86.3 | 86.3 | 720 | 90 | 162 | 18.2 | 36.5 | 主銷式 | T90、T100 |
48 | 8171GA | 146.5 | 138.1 | 74.5 | 74.5 | 500 | 62 | 199.6 | 16.2 | 33.34 | 主銷式 | YC135 |
49 | 8171GC | 146.5 | 138.1 | 74.5 | 74.5 | 500 | 33 | 198.9 | 14.2 | 33.34 | 主銷式 | W203、W16 |
50 | 8171GE | 146.5 | 138.1 | 74.5 | 74.5 | 600 | 33 | 198.9 | 16.2 | 33.34 | 插銷式 | EC150、EX120 |
51 | 8171GF | 146.5 | 138.1 | 74.5 | 74.5 | 500 | 33 | 198.9 | 16.2 | 33.34 | 插銷式 | YC135 |
52 | 8155GA | 123.5 | 117.1 | 59.5 | 59.5 | 305 | 52 | 166 | 12.2 | 28.7 | 主銷式 | 1700、1800攤鋪機 |
53 | 8155MB | 127.9 | 119.3 | 59.9 | 59.5 | 320 | 52 | 166 | 14.2 | 25.6 | 主銷式 | 1700、1800攤鋪機 |
54 | 8154MB | 123.4 | 117.4 | 56.6 | 50.6 | 450 | 56 | 167 | 14.2 | 27.8 | 主銷式 | 6T |
55 | 8154MC | 105 | 99.7 | 50.3 | 45 | 450 | 26 | 165 | 14.2 | 23.7 | 插銷式 | 6T |
56 | 8154ME | 123.4 | 117.4 | 56.6 | 50.6 | 650 | 81 | 144 | 16.2 | 23.7 | 主銷式 | 6T |
57 | 8154MF | 127.2 | 124.9 | 63.9 | 58 | 450 | 26 | 165 | 14.2 | 23.7 | 主銷式 | 6T |
58 | 8154MG | 123.4 | 117.4 | 56.6 | 50.6 | 400 | 55.5 | 182.5 | 14.2 | 23.7 | 主銷式 | 6T |
59 | 8140GB | 116.4 | 112 | 56 | 56 | 450 | 28 | 163.5 | 14.2 | 28 | 插銷式 | 8.5T |
60 | 8135MD | 106 | 100.7 | 51.3 | 46 | 450 | 20 | 154 | 12.2 | 23.7 | 插銷式 | 6T |
61 | 8135GA | 89 | 89 | 41 | 41 | 400 | 20 | 154 | 12.2 | 22.5 | 插銷式 | 5.5T |
62 | 8135GB | 99 | 99 | 51 | 51 | 400 | 20 | 154 | 12.2 | 22.5 | 插銷式 | 5.5T |
63 | 8135GC | 83 | 83 | 35 | 35 | 400 | 20 | 154 | 12.2 | 22.5 | 插銷式 | 5.5T |
64 | 8135GD | 74 | 74 | 30 | 30 | 400 | 20 | 154 | 12.2 | 22.5 | 插銷式 | 5.5T |
65 | 8135GE | 104.6 | 104.6 | 56.6 | 56.6 | 300 | 20 | 154 | 12.2 | 22.5 | 插銷式 | 5.5T |
66 | 8135GF | 94 | 94 | 46 | 46 | 450 | 20 | 154 | 12.2 | 22.5 | 插銷式 | 5.5T |
67 | 8135GK | 107.6 | 101.6 | 57.6 | 53.6 | 400 | 20 | 154 | 12.2 | 22.2 | 插銷式 | 5.5T |
68 | 8135GV | 107.4 | 101.4 | 50.6 | 47.4 | 380 | 20.5 | 154 | 13.2 | 22.3 | 插銷式 | EC55 |
69 | 8125GA | 104.1 | 101.2 | 57.2 | 57.2 | 250 | 45.5 | 140 | 10.2 | 21.7 | 主銷式 | EX30 |
70 | 8101GH | 76 | 76 | 35 | 35 | 350 | 21.5 | 109 | 21 | 插銷式 | 3.5T |

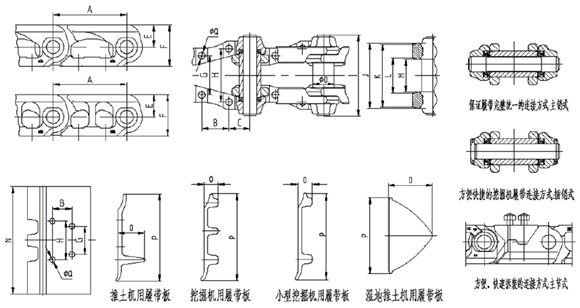

履帶鏈軌總成圖紙
履帶鏈軌總成圖片
